Hypertune Trailer Brake Control Module Kit for 16-18 Ram 1500 2500 3500 4500 5500 Integrated Electric Trailer Controller 82215040AB 82215040AC

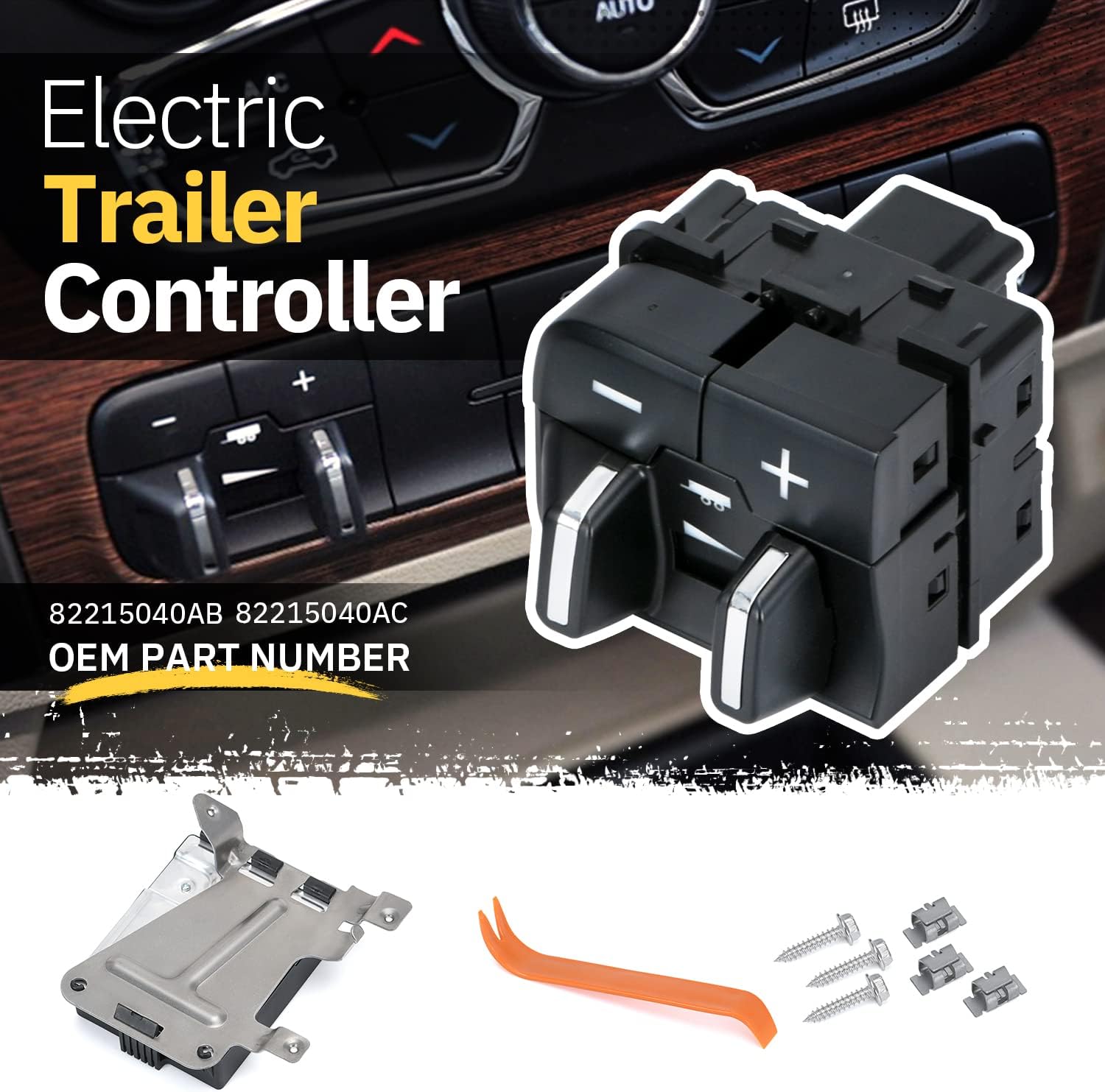

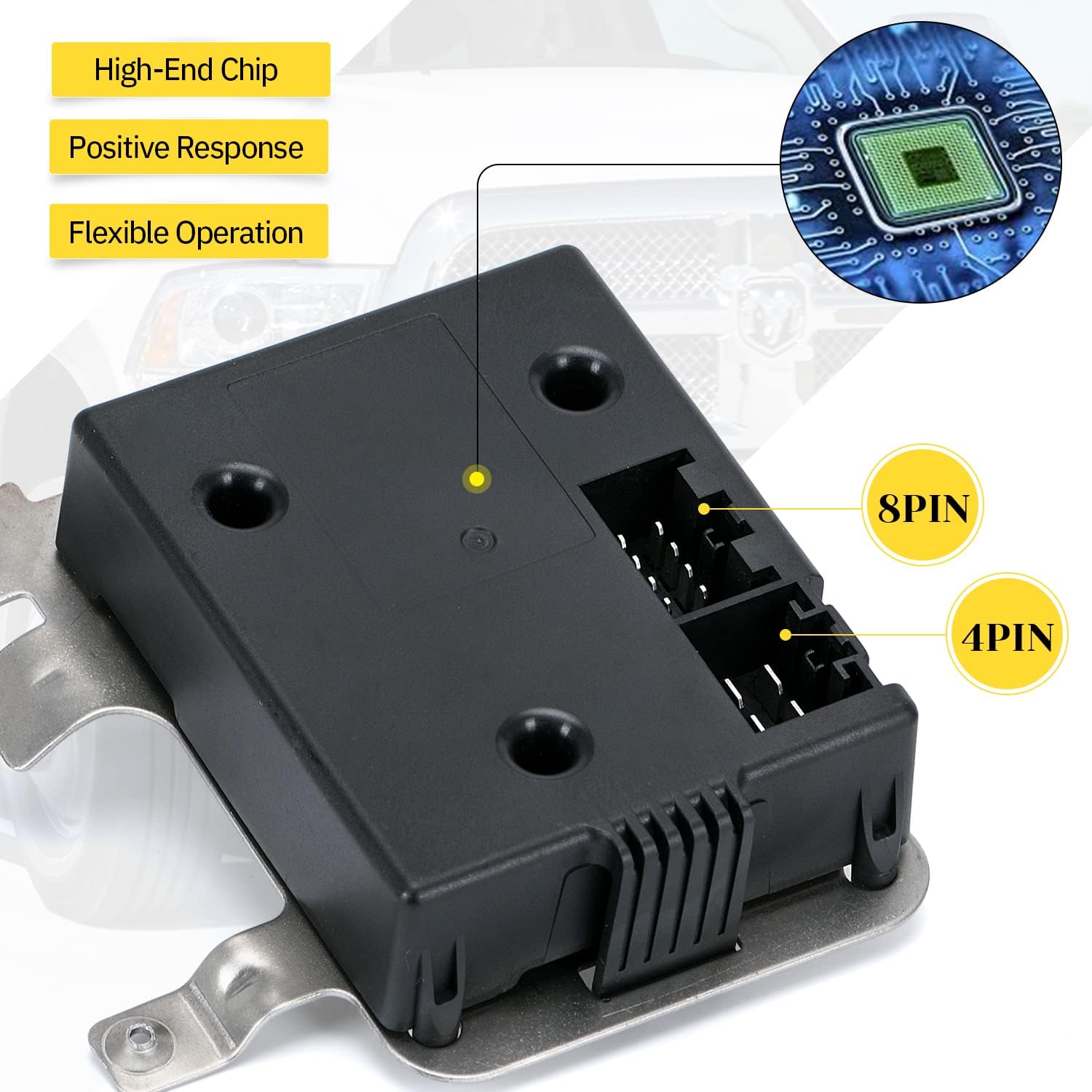

Package Included: 1x Trailer Brake Control Module;1x Trailer Brake Control Switch;1x Mounting Bracket;3x Fixing Screw w/ cap;1x Plastic Wrench. (100% Brand New Never Used Or Installed)How to Install Control Switch & Module: Loosen 2 bolts to pop off the entertainment console. Unplug the wiring connectors behind the console. Note the orange connector is gonna plug the brake control switch. Note the position here is gonna mount the brake control module. Replace the blank key with the brake control switch. Reinstall the whole console back. Loosen 2 screws to pop off the footwell cover. Find 2 connectors behind, and unwrap the foam. Recommend threading 3 holes of fasteners in and out to create threads. Install the bracket to the original bracket. Install the module and plug 2 connectors. Plug everything back. Note: Need to program the module into the truck with a local dealer.Why do You need it?The brakes between the main vehicle and the trailer are not coordinated. It’s very dangerous when driving at high speed. Our Trailer Brake Control Module has excellent functions and obvious braking effects. It can brake the seamless connection between the main vehicle and the trailer, and improve the brake control of your vehicle.The product allows the driver to automatically or manually activate the electronic brakes properly equipped on the trailers for greater stopping power on downhill grades.

• 【Application】 For 2016-2020 Ram 1500 Classic (DS) Body Style Truck. For 2016-2018 Ram 1500, 2500, 3500, 4500, 5500. NOT Fit 2019-2020 Ram 1500 DT Body Type.
• 【OE Standard】 According to original factory specifications, perfect match to original car. Replace OE Number: 82215040, 82215040AB, 82215040AC. 601-024, 68105206AB, 68105206AC.
• 【Easy to Install】 Direct replacement. Correct connector, no cutting or splicing needed.
• 【Best Choice】 Precise programming, flexible operation, high-quality braking. Depending on the load requirements, the driver can customize the braking force used by the trailer.
• 【Customer Service】 Our Trailer Brake Control Module Kit supports 90-day returns and exchanges. Our company attaches great importance to the shopping experience of every customer. Risk-free shopping. If you have any quality issues during the warranty period, please contact customer service promptly.
